ATG-R01-48A Hardwire

WIFI&Bluetooth-enabled 48Amp/11.5kw smart EV charging station (Level 2 EVSE) with 18-foot cable

  • High charging speed, 48A / 11.5 kW
  • Intelligently connects the device through WIFI or Bluetooth to remote control or monitor your charger.
  • Precision measurement of power, energy, voltage & current.

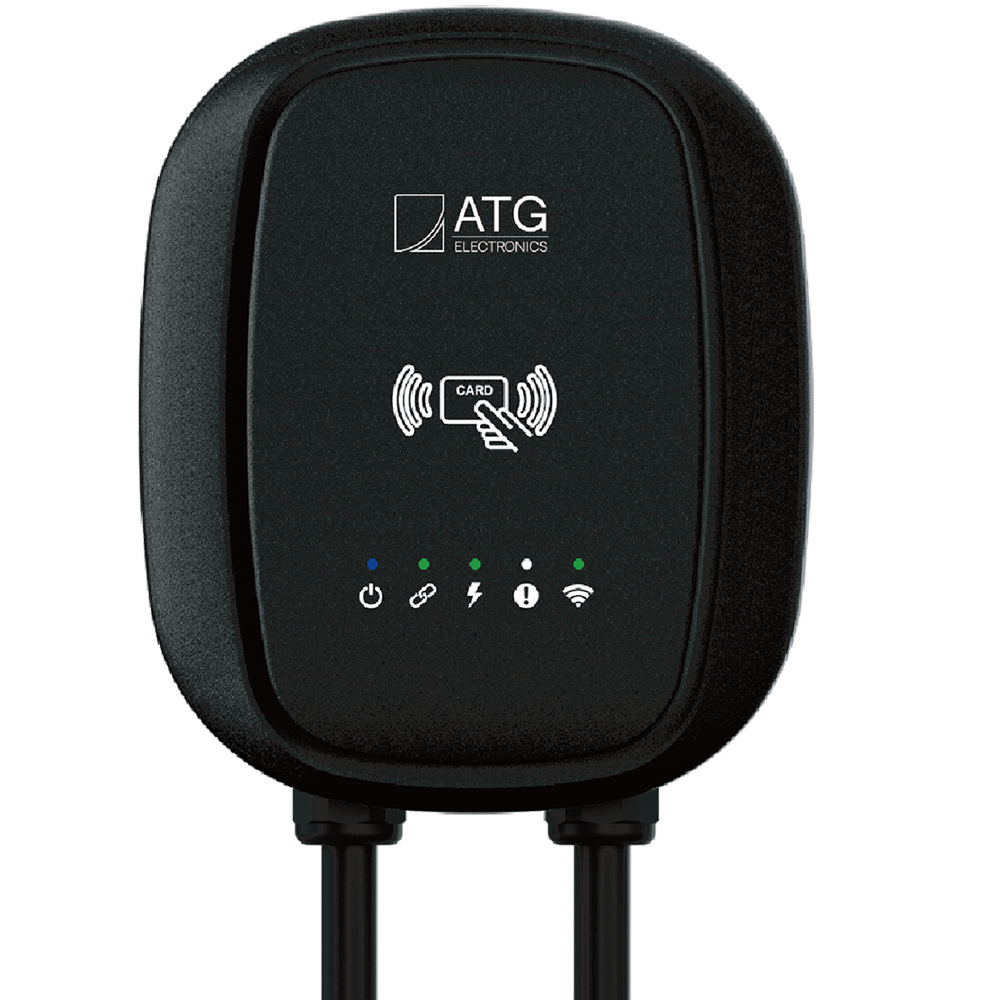

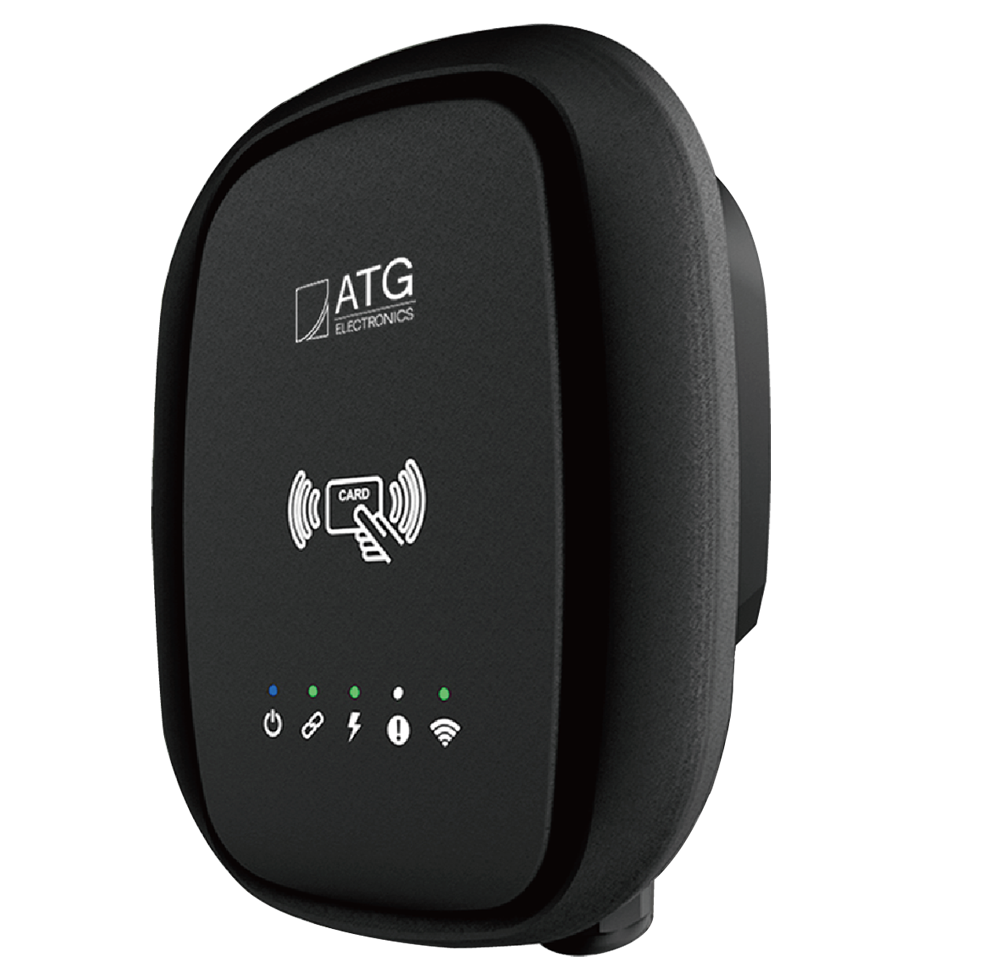

  • Dynamic LED lights display WiFi connectivity and charging behavior
  • IK10 impaction resistant rating and tamper proof screws.
  • Weatherproof, dust-tight, polycarbonate casing
  • 5-Year warranty

Spec Sheets

Installation

ATG-R01-48A, the best-selling smart home charging station, combines speed, performance and value. Enjoyed by thousands of satisfied EV drivers, it delivers all the safety and smart charging features you need to make home charging easy, reliable and cost-effective.

Built on the universal J1772 charging standard, ATG-R01 is a Level 2 charging station that can power all electric vehicles on the market today.

                  • Up to 7x Faster Charging

Spend less time waiting for your EV to charge and more time enjoying the drive.

                 •  Smart Connectivity

Intelligently connects the device through WIFI or Bluetooth to remote control or monitor your charger.

                 •  Reliable Management

Precision measurement of power, energy, voltage & current.

                 •  Convenient & Stylish Design

Dynamic LED lights display WiFi connectivity and charging behavior.

                 •  Onboard Intelligence

Plug in, charge, and manage your schedule even when you can’t connect to the internet.

                 •  Notifications

Get notified when time-of-use in effect, start of charge, end of charge, unit offline, unit back online, car not plugged in by a set time.

                •  Easy to Use and Install

Quick-release mounting bracket and built-in cable management make set up and daily charging a breeze. 18ft cable allows customers to easily reach their EV’s charging port.

                •  Universal Compatibility

SAE-J1772  connector ensures compatibility with all EVs on the market today and in the future, including Teslas with a commonly used adapter.

                •  Cleaner Driving

•  Optimize charging times and participate in smart grid programs to reduce emissions

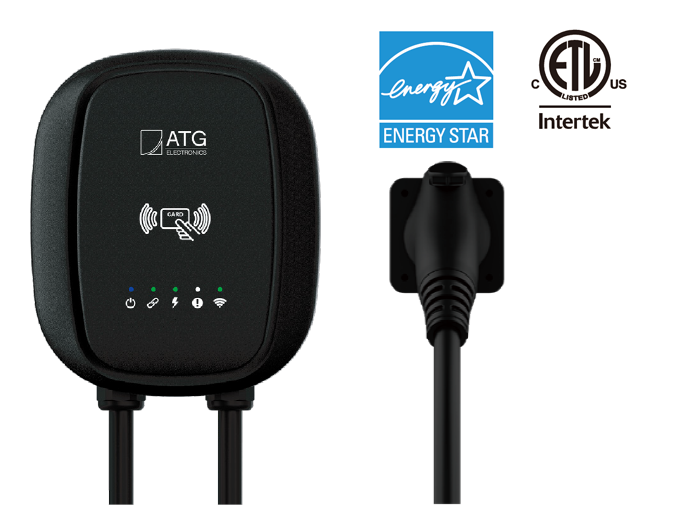

•  ENERGY STAR®-certified

                •  Flexible Installation

Available with installation options: a 240V plug (NEMA 14-50).

                •  Industrial-Strength

IK10 impaction resistant rating and tamper proof screws.

                •  Warranty

5-year manufacturer’s warranty for use under normal residential operating conditions (please note that the residential warranty is void if the station is used in a non-residential setting).

                •  Indoor and Outdoor Rated

Weatherproof, dust-tight, polycarbonate casing





Output Power                     48A Max, 11.5 kW at 240 VAC

Input Voltage                      Single phase input power: 110 – 240 VAC ~ 60Hz

Input                                   Hardwire required

Output Cable                     18-foot/5.5m cable (25-foot/7.5m optional)

                         SAE J1772 standard plug

Dimensions                       12.3” (313 mm) x 10.2”(260 mm) x 4.1” (105 mm)

Codes and Standards        NEC625 compliant, UL2594 compliant, OCPP1.6J, FCC Part 15 Class B,Energy Star

Warranty                            5-year warranty for use under normal residential operating conditions

                  Safety                                 ETL Listed



                  Energy Efficiency                ENERGY STAR certified

                  Data Sheet                          Download

In the package, you will receive:

Package Content

ATG-R01-48A supports Hardwire installation, See our installation guide to learn more.

Related Products


FAQ

  • What’s the difference between a hardwired and plug-in ATG-R01?

    Hardwired units come with a standard input whip, which requires a professional electrician to permanently connect the ATG-R01 to a home’s electrical system.

    Plug-in ATG-R01 come with a 240-volt NEMA 14-50P plug , which connect to a NEMA 14-50R receptacle often used for high-powered household items.

  • Do I need a professional electrician to install ATG-R01?

    ATG-R01-32A/ATG-R01-40A matches NEMA 14-50P plug, If you have an available 240V NEMA 14-50 receptacle near where you park your electric car, you will likely not need any professional work — you can simply plug in, connect to WiFi, and get going.

    ATG-R01-48A, which requires a professional electrician to permanently connect the charger to a home’s electrical system.

  • Where can I find the installation guide and setup instructions for WiFi and the app?

    You can find the complete online manual 32/40A , 48A here, which includes installation and WiFi setup instructions.

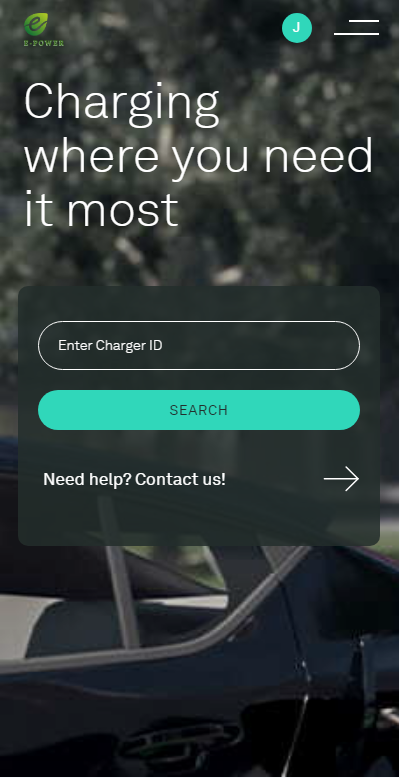

  • How to use APP to remotely control ATG-R01

    You can find the online manual here, which includes remote control or monitor your charger instructions.

  • Do I need WiFi setup at home?

    You will need a WiFi connection to use ATG e-Power smart charging features, such as power monitoring, scheduling, and reminders. In the absence of WiFi, your ATG-R01 will act as a standard charging unit, and any schedules or limits you set when connected to WiFi will remain, even if the ATG-R01 is no longer connected to WiFi. We highly recommend connecting your ATG-R01 to WiFi, but your car will charge even if you cannot connect.

  • Is ATG-R01 safety certified?

    Yes, ATG-R01 is ETL Listed, which means it adheres to the highest safety standards for electric vehicle supply equipment.

  • Is there a warranty?

    We also offer a 5-year limited warranty on residential charging stations. Please note that this warranty is only valid for use under normal residential operating conditions. Using a residential box outside of normal residential operating conditions, such as for commercial application, voids the residential warranty.
