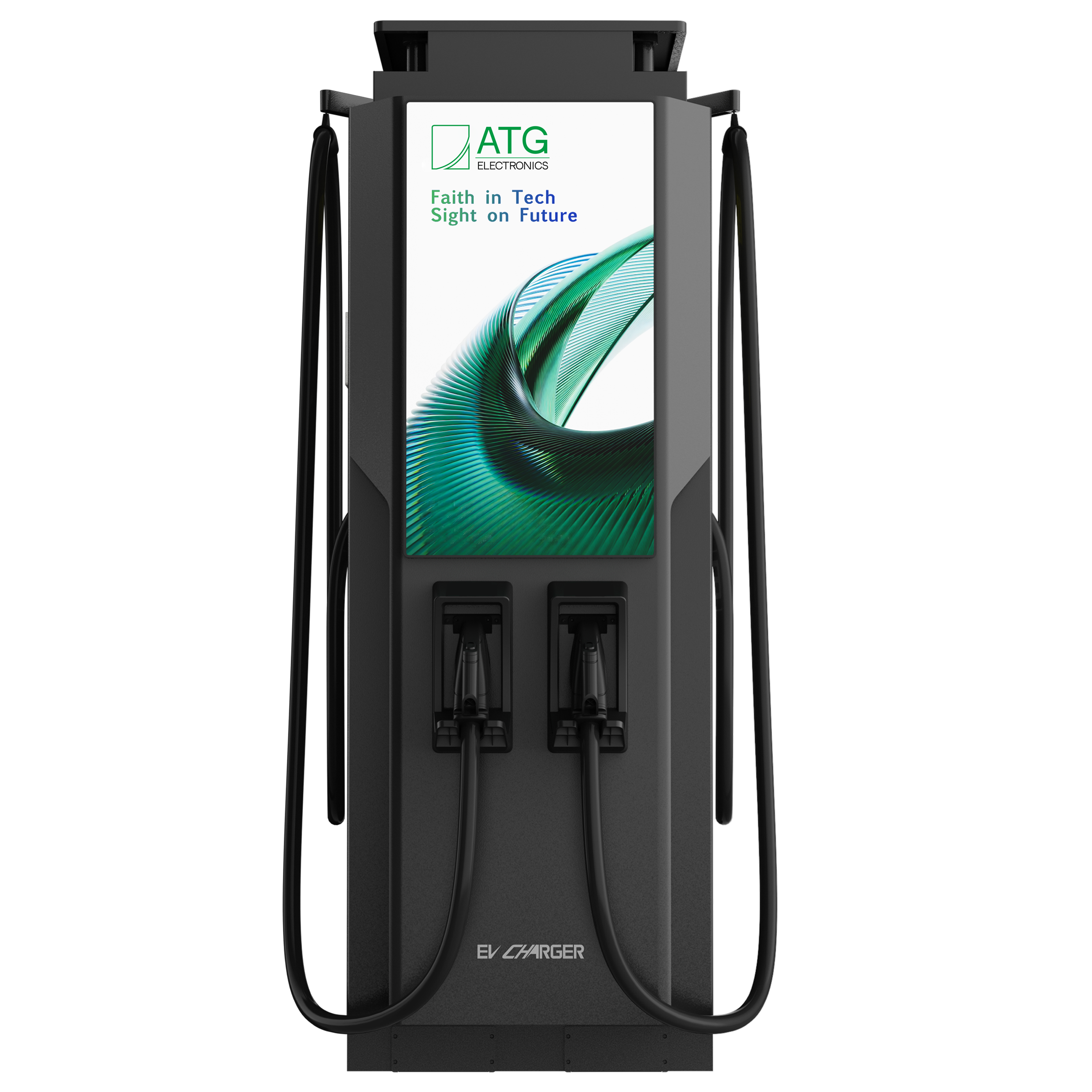

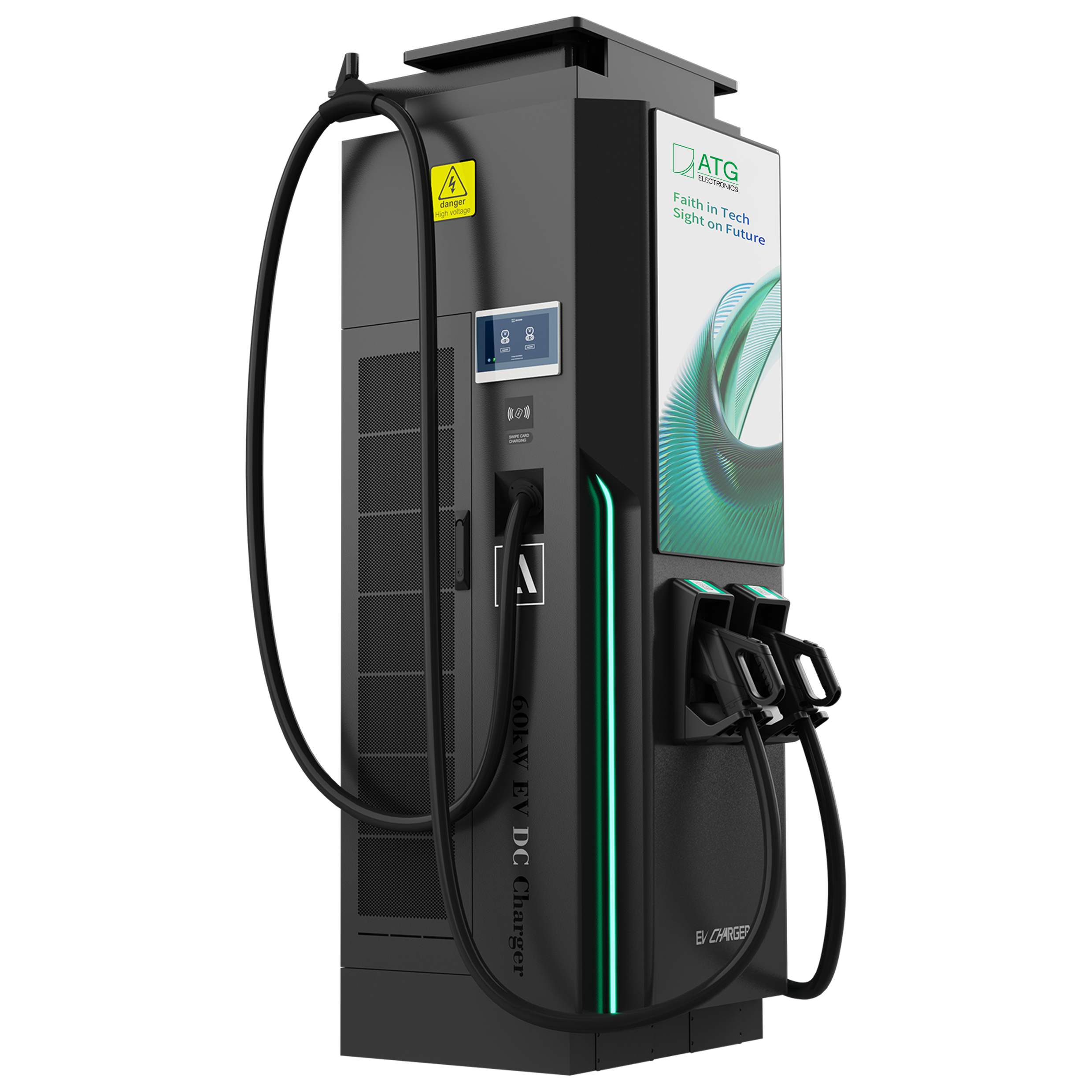

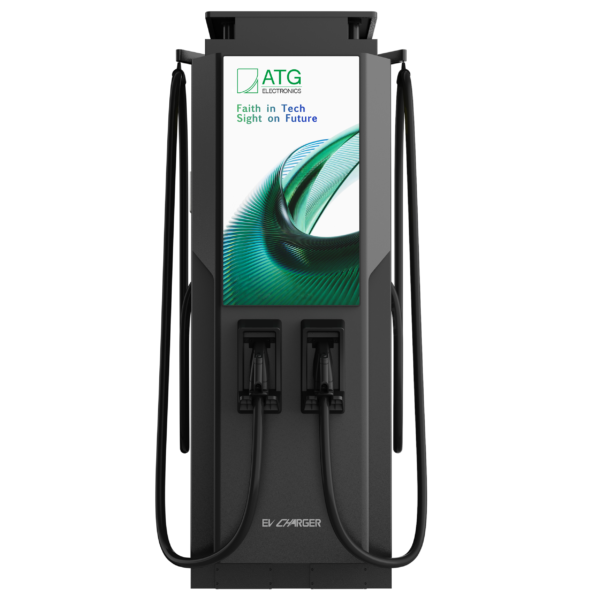

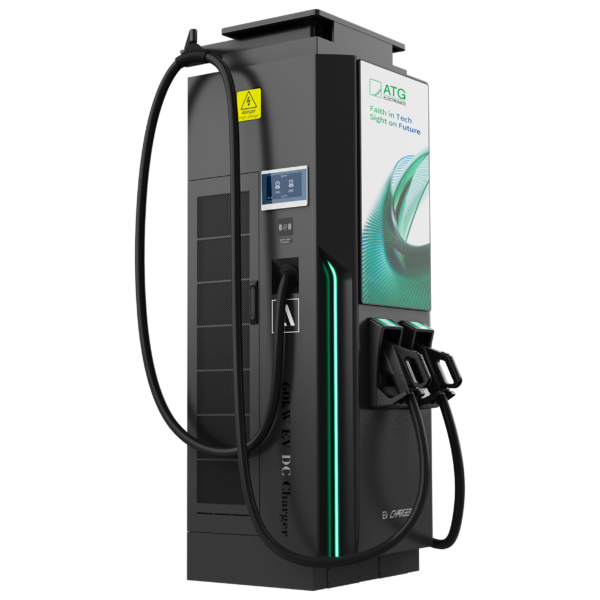

RSEVC-480V/240kW/2-US-RGE/C-BK01

200-1000V DC wide-input fast charger with 208/480V AC support, delivering 60kW@208V/120kW@480V (100-250A), CCS1 connector, OCPP 1.6/ISO 15118 protocol, IP65/NEMA 3R

• ​​Wide Voltage Input​​ – Seamlessly supports 200 – 1000V DC and 208/480V AC, enabling operation on existing commercial power without the need for grid expansion
• ​​High – Power Output​​ – Delivers a maximum power of 60kW at 208V and 120kW at 480V, with an output current ranging from 100A – 250A to ensure rapid charging
• ​​Standard Connector​​ – Equipped with the CCS1 charging connector, a widely – adopted standard for efficient and reliable charging
• ​​Smart Charging Protocols​​ – Compliant with OCPP 1.6 and ISO 15118 protocols, facilitating smart charging management and seamless Plug & Charge functionality
• ​​Modular Design​​ – Features a modular construction that meets BABA or TAA requirements, allowing for up to 45% tariff savings
• ​​Advertising Capability​​ – Comes with a 35 – Inch Independent Advertising Display that supports OTA updates and customizable content, creating additional revenue streams</span
• ​​Convenient Payment Options​​ – Integrated with a VPOS Credit Card Reader powered by Nayax, along with multiple payment methods like RFID card, Nayax POS, VIN code, QR code, and credit card for seamless transactions
• ​​Reliable Operation​​ – Operates within a wide temperature range of – 30°C to 55°C, humidity below 95% non – condensing, and up to 2000m altitude, with a 3 – year warranty and Energy Star compliance for long – term reliability
