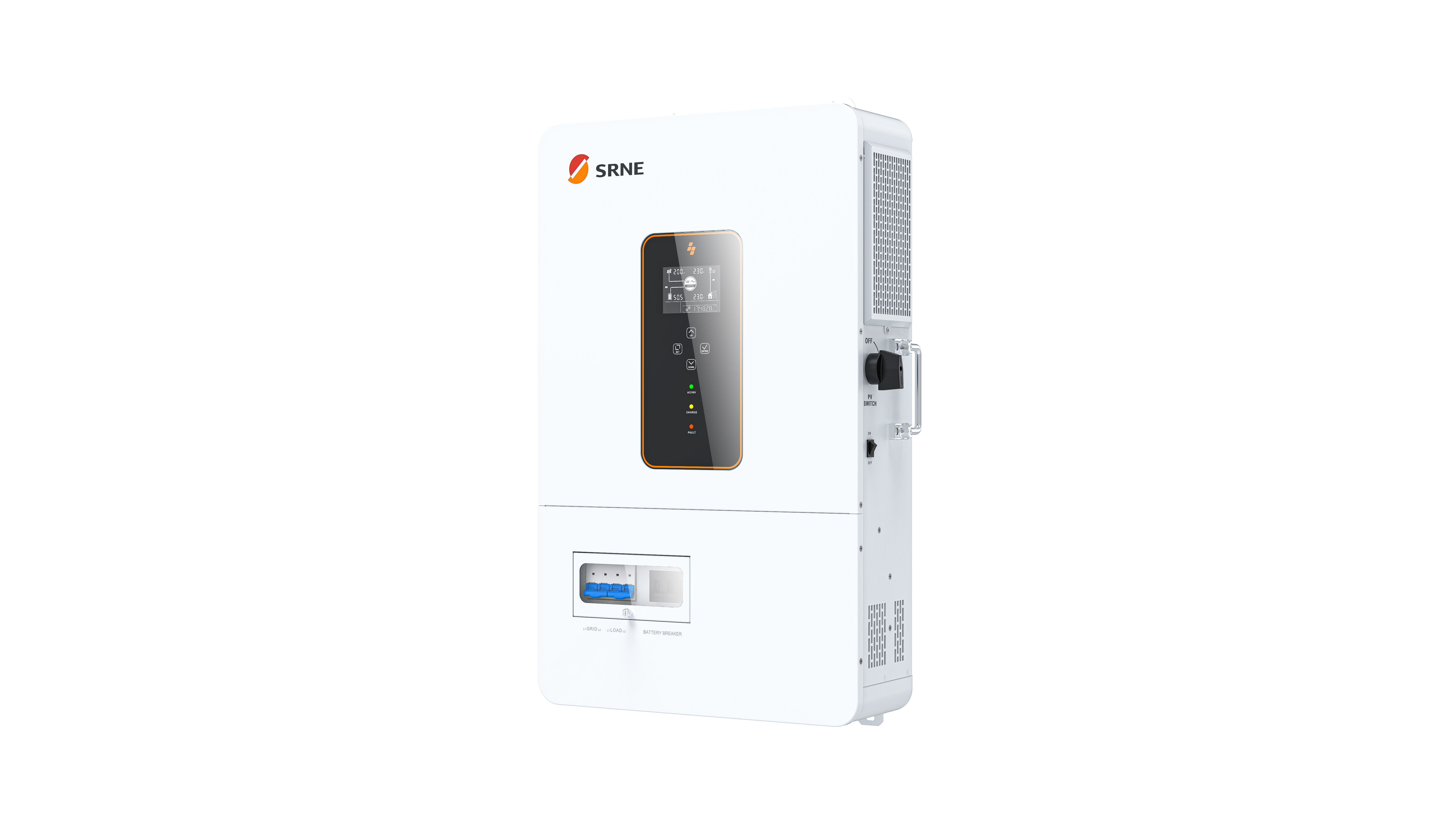

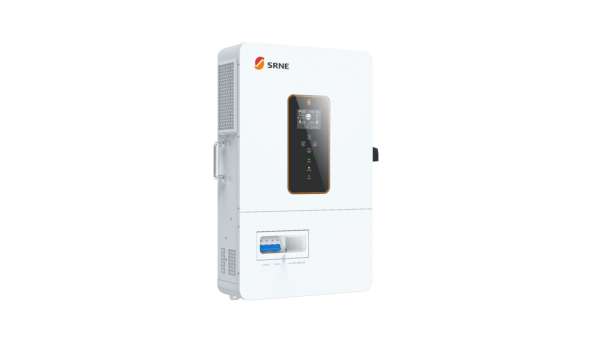

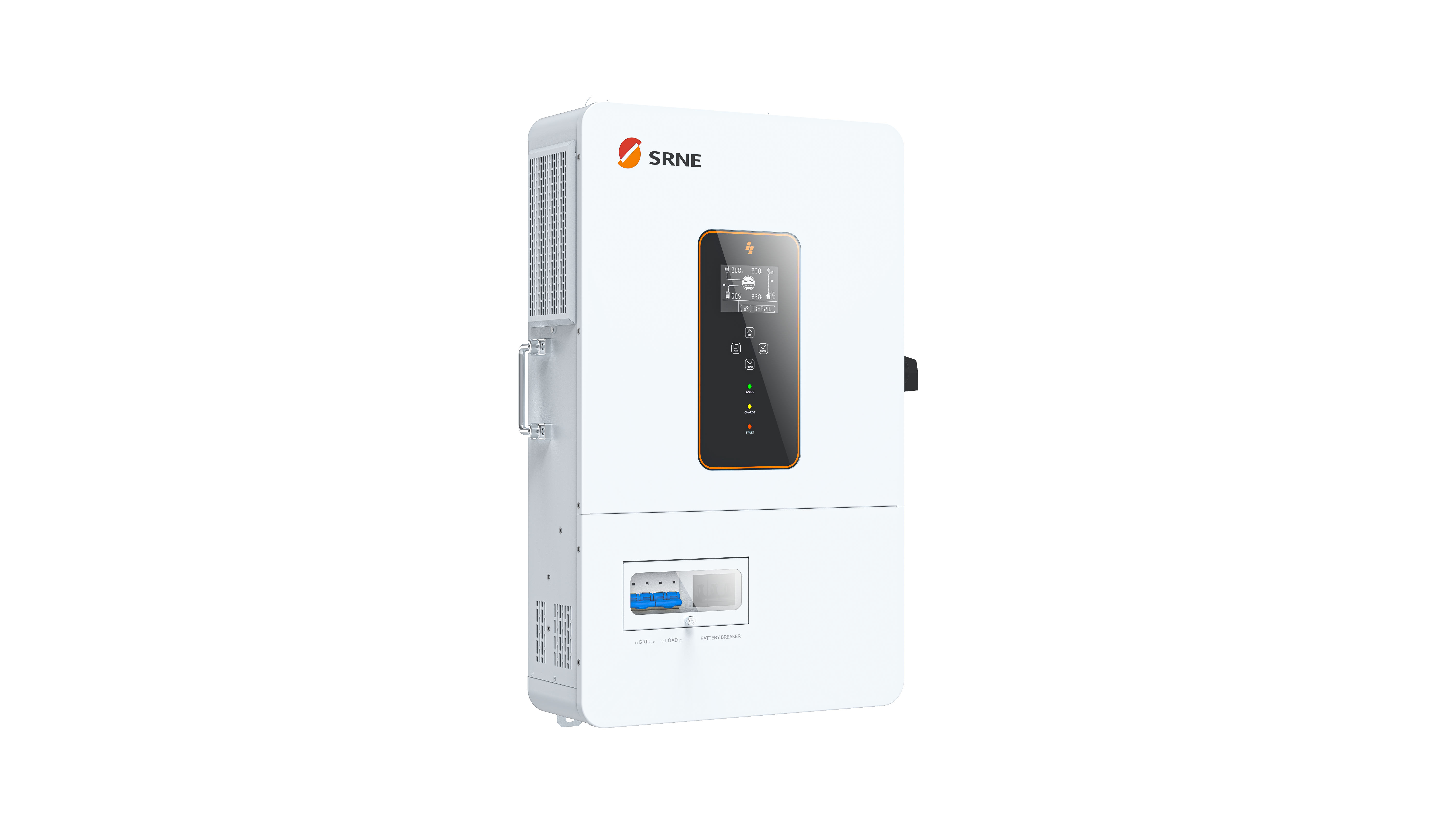

SRNE 10kw Off-grid Solar Inverter ABP48100U200-H 120/240V Split Phase Solar Inverter 4Vv Home Solar System With Dual MPPT

10KW | Split/Single-Phase Off-grid | Dual MPPT

  • Battery Technologies:    Lithium-ion battery/lead-acid battery/user-defined battery
  • Peak Inverter Efficiency:    92%
  • Parallel Capacity:    1 to 6 units (2 or more units can form a three-phase output)
  • Compatible with 48V storage batteries
  • Optional CT improves safety and reliability
  • Supports both mains and generator power input with intelligent switching
  • Solar Charger Controller up to 200A charging current
  • Support SUB working mode: support Grid and PV hybrid charging
  • Support time-sharing charge and discharge function
  • Support 6 parallel machines up to 60kW
  • Dimensions & Weight:    723mm x 448mm x 150mm | 28kg

Spec Sheets

ABP 8~10kW

Installation

User Manual
cETL

Fenmian

           Key Features:

         •   Efficient

          Solar Charger Controller up to 200A charging current.

         •   Installation convenient

          Support SUB working mode: support Grid and PV hybrid charging.

         •   Security

          Supports both mains and generator power input with intelligent switching.

          •   Intelligent

          Support time-sharing charge and discharge function.

          •   Comunication

          Support 6 parallel machines up to 60kW.

          •   Waterproof protection level

          Optional CT improves safety and reliability.

Spec















SRNE 10kw Solar Storage Inverter supports Hardwire installation, See our installation guide to learn more.
